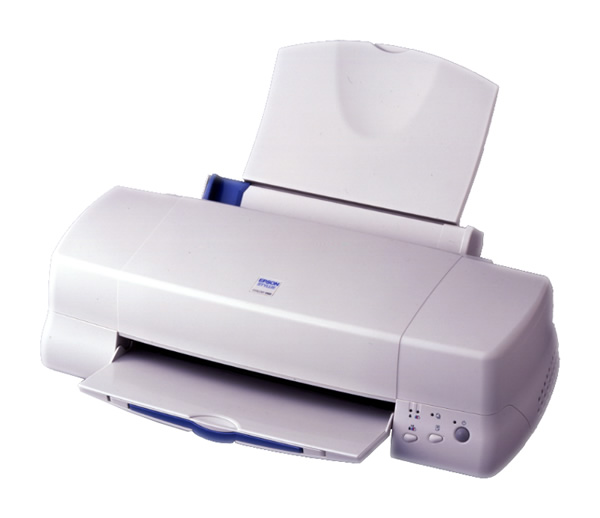

Back catalogue – Epson Stylus Color 1160
The new Epson Stylus COLOUR 1160 is a revolutionary printer targeted at business and professional graphics users wanting maximum colour output combined with speed, affordability and the versatility of printing larger than A3.
| PRINTER TYPE | ||
|---|---|---|
| PRODUCT NAME | ||
| PRODUCT CODE | ||
| PRINTING METHOD | On-demand inkjet (piezoelectric) | |
| Nozzle configuration | 144 nozzles (Black) 48 x 3 nozzles (Cyan, Magenta, Yellow) |
|
| Print direction | Bi-directional with logic seeking | |
| Resolution | 1440 x 720 dpi | |
| PRINT SPEED | ||
| Black Text (Memo) A4 | Approx 9.5ppm (Economy) *1 | |
| Colour Text (Memo) A4 | Approx 9.2ppm (Economy) *2 | |
| Text and Photo A4 | Approx 4.2ppm (Normal) *3 | |
| Full Page Colour A4 | Approx 1.4ppm (Normal) *4 | |
| Photo A4 | 103 sec per photo (Fine) *5 | |
| Photo A3 | 180 sec per photo (Fine) | |
 |
||
| "Seconds" rating refers to the time taken to print 1 page. "ppm" rating refers to the number of pages printed in 1 minute. Additional processing time may vary based on system configuration, software application and page complexity. | ||
| PAPER HANDLING | ||
| Paper Feed Method | Friction feed with paper feeder | |
| Paper Hold Capacity | Plain paper | 100 sheets |
| Photo quality inkjet paper | 65 sheets | |
| Photo quality glossy paper | 20 sheets | |
| Photo paper | 20 sheets | |
| Photo quality glossy film | 30 sheets | |
| Transparencies | 10 sheets | |
| Envelopes | 10 envelopes | |
| Photo quality inkjet card | 30 cards | |
| Paper sizes | A3+, A3, A4, Letter, B5, Legal, Envelope (No. 10, DL, C6 132 x 220mm), Index card (A6, 5 x 8"), Photo paper (6 x 4") |
|
| Paper Thickness | 0.08mm - 0.11mm (paper) Less than 0.43mm (envelope) |
|
| Input data buffer | 256 Kbytes | |
| Interface | Centronics®-type 8-bit parallel interface (IEEE-1284 nibble mode) USB Interface |
|
| CONTROL PANEL | ||
| Functions | Power on/off, Load/Eject, Cleaning (Black), Cleaning (Colour) | |
| Indicators | Power, Paper Out, Ink Out (Black), Ink Out (Colour) | |
| RELIABILITY | ||
| Total print volume | 75,000 pages (A4, text) | |
| ENVIRONMENTAL CONDITIONS (operating) | ||
| Temperature | 10° to 35° C | |
| Humidity | 20% to 80% RH (without condensation) | |
| ELECTRICAL SPECIFICATIONS | ||
| Voltage | AC 220 to 240V | |
| Rated frequency | 50 to 60 Hz | |
| Power consumption | Approximately 14W (Self test in LQ 10 cpi) | |
| DIMENSIONS | ||
| Width x Depth x Height | 609 x 311 x 175mm | |
| Weight | 6.5 kg (excluding ink cartridges) | |
| PRINTER DRIVERS | ||
| Operating System | Macintosh (QuickDraw) Microsoft® Windows® 95/NT Version 4.0 Microsoft® Windows® Version 3.1/3.11 (Does not support MS DOS) |
|
| WARRANTY | ||
| 12 months return to base | standard | |
| Optional Additional 2 Year Warranty | 3YW1160 | |
| INK CARTRIDGES | ||
| Black ink cartridge | (S020189) | |
| Type | Exclusive cartridge | |
| Colour | Black | |
| Print capacity‡ | Up to 900 pages: 3.5% ECMA (ISO 10561), text @ 360 dpi | |
| Colour ink cartridge | (S020191) | |
| Type | Exclusive cartridge | |
| Colours | Cyan, Magenta, Yellow | |
| PRINT CAPACITY‡ | Up to 300 pages 5% each CMY (total 15% coverage) | |
Product Options
| Product Code | Description |
|---|---|
| Products | |
| C295051 C11C295051 (New) |
Epson Stylus COLOR 1160 colour inkjet printer |
| Cables | |
| EPCP | Parallel printer cable |
| Options | |
| C12C823788 | EpsonNet 10/100BaseTX External Print Server |
| Warranties | |
| 3YW1160 | Optional Additional 2 Year Warranty |
