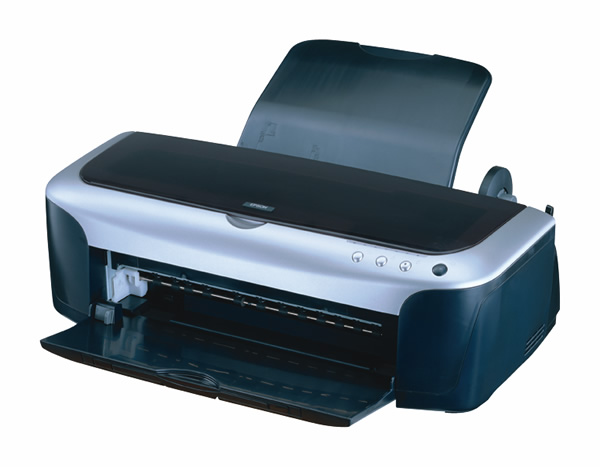

Back catalogue – Stylus Photo 2100
Professional quality A3+ inkjet printer featuring UltraChrome ink for vivid colour reproduction and long life prints. The Stylus Photo 2100 also comes 7 individual ink cartridges including the choice of photo and matte black, roll paper holder for seamless panoramas, optional auto cutter and direct printing to inkjet printable CDs and DVDs.
| PRINTER TYPE | ||
|---|---|---|
| PRODUCT NAME | ||
| PRODUCT CODE | ||
| PRINTING METHOD | On-demand Inkjet (piezoelectric) with Variable-Sized Droplet Technology | |
| NOZZLE CONFIGURATION | 96 (each colour) nozzles x 7 (Photo Black/Matte Black, Light Black, Cyan, Light Cyan, Magenta, Light Magenta,Yellow) | |
| PRINT DIRECTION | Bi-directional with logic seeking | |
| PRINT SPEED | ||
| BLACK TEXT (MEMO) A4 | Approx. 7.5 PPM (Draft) 1 | |
| COLOUR TEXT (MEMO) A4 | Approx. 7.3 PPM (Draft) 2 | |
| Photo A4 | Approx. 230 sec. per photo (Photo-1440dpi) 3 when printed on Epson Photo Paper |
|
| PRINT SPEED DATA PRINTOUT PATTERNS | ||
| The thumbnail images below show the printout patterns used to determine print speed specifications. | ||
 |
||
| "Second" rating refers to the time taken to print one page. "ppm" rating refers to the number of pages printed in one minute. Additional processing time may vary based on system configuration, software application and page complexity. The computer environment we test under is as follows: CPU:1GHZ Pentium III; RAM: 128MB; OS: Windows ME; Interface/Connectivity: USB. | ||
| RESOLUTION | Max. 2880 x 1440dpi | |
| PAPER HANDLING | ||
| PAPER FEED METHOD | Friction feed with Paper Feeder | |
| PAPER SIZES | Maximum A3+ | |
| PAPER THICKNESS | 0.08mm ~ 0.11mm (Cut Sheet Feeder) 0.04mm ~ 1.3mm (Manual Feed Slot) |
|
| LOADING CAPACITIES FOR Epson SPECIAL MEDIA | ||
| Media Type | Loading Capacity | |
| Premium Ink Jet Plain Paper | Up to 8 mm (total paper thickness) | |
| Bright White Ink Jet Paper | Up to 8 mm (total paper thickness) | |
| Premium Semigloss Photo Paper | Up to 20 sheets for A4. One sheet at a time for A3 and super A3/B | |
| Premium Glossy Photo Paper | One sheet at a time | |
| Glossy Paper-Photo Weight | One sheet at a time | |
| Archival Matte Paper | Up to 20 sheets for A4 and always place a support sheet* under the stack of paper. Up to 10 sheet for A3 and super A3/B | |
| Watercolor Paper-Radiant White | One sheet at a time | |
| * Take care not to print on a support sheet that is loaded under special media | ||
| INPUT DATA BUFFER | 256K byte | |
| INTERFACES | ||
| Centronics®-type 8-bit parallel interface (IEEE 1284 Nibble mode) USB 2.0 Interface (port is compatible with USB 1). IEEE 1394 (Firewire) |
PRODUCT OPTIONS | |
| Product Code | Description | |
| C12C823788 | EpsonNet 10/100BaseTX External Print Server |
|
| C12C842863 | Epson Stylus RIP Professional | |
| C12C815222 | Optional Auto Roll Paper Cutter | |
| ENVIRONMENTAL CONDITIONS (OPERATING) | ||
| TEMPERATURE | 10 ~ 35° C | |
| HUMIDITY | 20 ~ 80% RH | |
| ELECTRICAL SPECIFICATIONS | ||
| RATED VOLTAGE | AC 220 ~ 240V | |
| RATED FREQUENCY | 50 ~ 60 Hz | |
| POWER CONSUMPTION | Approx. 19W (ISO10561 Letter Pattern) | |
| PRINTER SOFTWARE ON CD-ROM | ||
| PRINTER DRIVERS | Mac® OS 8.6 to 9.x. Mac® OS X 10.1 or later. Microsoft® Windows® NT 4.0, 2000 / XP / 95 / 98 / Me |
|
| PLUS | ON LINE GUIDE Epson PhotoQUICKER 3.4 Epson PRINT CD |
|
| WARRANTY | ||
| 12 months return to base - standard | ||
| Optional Additional 2 Year Warranty - 3YW2100 | ||
| LIGHTFASTNESS TEST CRITERIA (INDOOR DISPLAY CONDITIONS) | ||
| Lightfastness* | Over 75 years on Archival Matte Paper | |
| Light source | Fluorescent light | |
| Intensity | 70k lux | |
| Temperature | 24°C | |
| Humidity | 60% RH | |
| Glass mount | 2mm, soda lime | |
| Fade criteria | Pure YMC 30% loss at OD=1 | |
| Display life calculation | Total illuminance/(500 lux x 10 hours x 365 days = 1 year) | |
| Tests developed and conducted by Epson under fluorescent light (indoor display condition) with glass mount. The data is calculated by Epson’s accelerated test of prints on specialty media. * Data is calculated using accelerated simulation of fading under indoor preservation conditions including fluorescent light indoor display. Temperature, humidity and some atmospheric gases may also affect the rate of fading. The estimated lightfastness period does not indicate the colour changing or the durability of the paper itself. Epson recommends that your prints be stored in a photo album (or plastic photo storage box) in acid free, archival sleeves commonly available from most camera shops. * For more information on lightfastness. |
||
| COLOUR MATCHING | ||
| Epson Colour Management System included in Windows and Mac drivers: | ||
| Windows ICM (Windows® 95/98/Me/2000/XP) Apple ColorSync 2.0 compatible sRGB (Windows® 98/Me/2000/XP) |
||
| **True BorderFree printing is available for the following media sizes: Letter, 4" x 6", 5" x 8", 8" x 10", 3.5" x 5", 5" x 7", 100 x 150mm, A4, A3, A3+ |
||
| INK CARTRIDGES - Black | ||
| Photo Black (Standard) | T0341 | |
| Matte Black (Optional) | T0348 | |
| PRINT CAPACITY‡ | 628 pages at ECMA 3.5% | |
| INK CARTRIDGES - Colour | ||
| Cyan | T0342 | |
| Magenta | T0343 | |
| Yellow | T0344 | |
| Light Cyan | T0345 | |
| Light Magenta | T0346 | |
| Light Black | T0347 | |
| PRINT CAPACITY‡ | 440 pages at A4 5% | |
Product Options
| Product Code | Description |
|---|---|
| Options | |
| C12C823788 | EpsonNet 10/100BaseTX External Print Server |
| C12C842863 | Epson Stylus RIP Professional |
| Warranties | |
| 3YW2100 | Optional Additional 2 Year Warranty |
