Back catalogue – Stylus Photo RX430

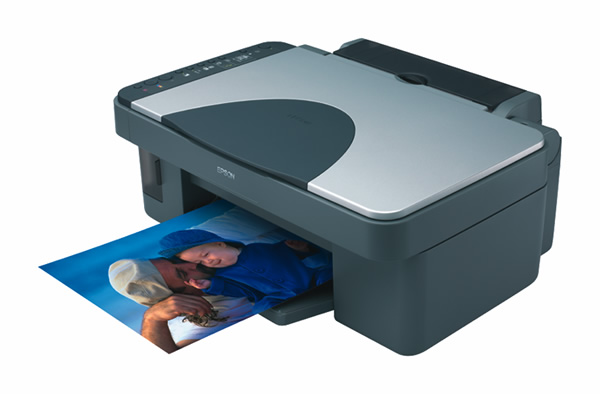

The Epson Stylus Photo RX430 is the versatile, economical answer to printing, scanning and copying your digital camera photos at home. High quality photo ink in individual cartridges makes printing stunning photos so easy and economical. Convenient memory card slots and advanced scanning software make it so easy to use.
Printer |
|||
| PRINTER TYPE | |||
|---|---|---|---|
| PRINTING METHOD | Epson Advanced MicroPiezo head Ink on demand | ||
| NOZZLE CONFIGURATION | 90 nozzles (Black) 3 x 90 nozzles (Cyan, Magenta, Yellow) |
||
| PRINT DIRECTION | Bi-directional with logic seeking | ||
| PRINT SPEED | |||
| BLACK TEXT (MEMO) A4 | Approx. 15 PPM (Economy) *1 | ||
| COLOUR TEXT (MEMO) A4 | Approx. 15 PPM (Economy) *2 | ||
| Photo A4 with border | 205+ sec per photo (Photo) *3 | ||
| Photo A4 | 117+ sec per photo | ||
Print Speed Data Printout Patterns The thumbnail images below show the printout patterns used to determine print speed specifications. "Second" rating refers to the time taken to print one page. "ppm" rating refers to the number of pages printed in one minute. The computer environment we test under is as follows: CPU:1GHZ Pentium III; RAM: 128MB; OS: Windows ME; Interface/Connectivity: USB + When printed on Epson Premium Glossy Photo Paper A4 |
|||
| RESOLUTION | |||
| 5760 x 1440 Optimised dpi using Resolution Performance Management (RPM) Technology | |||
| PAPER HANDLING | |||
| PAPER FEED METHOD | Friction feed with Paper Feeder | ||
| PAPER HOLD CAPACITY | Up to 100 sheets / 15 envelopes | ||
| PAPER SIZES | A4, Letter, A5, A6, B5, Legal, 4"x6", 5"x8", 8"x10", Envelopes: (No. 10, DL, C6, 123x220mm), Executive, Half Letter. | ||
| PAPER THICKNESS | 0.08mm ~ 0.11mm (Paper) 0.16mm ~ 0.52mm (Envelopes) |
||
| * True BorderFree printing is available for the following media sizes: 4x6", 5x8", 3.5x5", 5x7", Panoramic(210x594mm), A4. Media types recommended: Photo Paper, Matte Paper - Heavyweight, Premium Glossy Photo Paper. | |||
Scanner |
|||
| SCANNER TYPE | Flatbed colour image scanner | ||
| PhotoELECTRIC DEVICE | 3 Line Colour CIS | ||
| DOCUMENT SIZE | 216mm x 297mm | ||
| PIXEL DEPTH | Colour 48-bit internal, 24-bit external | ||
| SCANNING RESOLUTION | Main 1200 x SubScan 2400dpi with Micro Step Drive | ||
| SCANNING SPEED | |||
| Mono - up to 4m sec / line at 300dpi Colour - up to 12m sec / line at 300dpi |
|||
Copy Function |
|||
| COPY SPEED | |||
| Approx 13cpm *1 - black text (MEMO A4) (economy mode), Approx 13cpm *2- A4 colour text (MEMO A4) (economy mode) |
|||
| STANDALONE COPY FUNCTIONALITY | |||
| Independent Menu, Copies / Value Buttons, Number of Copies 1 to 99 Fit-To-page Function Margin Modes: BorderFree, Small, Standard. |
|||
General |
|||
| INTERFACES | USB 1.1+ (Works properly under USB 2.0 environment) | ||
| + To use the USB port, your PC must conform to PC98 specifications, and have Windows® 98 preinstalled. Consult the documentation provided with your PC for further information about USB connectivity. Note also that printing errors may occur if non-standard cables or more than two hub connections are used. | |||
| OPERATING SYSTEMS | |||
| Microsoft® Windows® 98, Me/ 2000/ XP Mac® OS 9.1 or later - Mac® OS X 10.2 or later |
|||
| PRINTER SOFTWARE (AVAILABLE ON CD-ROM ONLY) | |||
| PRINTER DRIVERS * | Microsoft® Windows® 98/Me/2000/XP Mac® OS 9.1 or later, Mac® OS X 10.2 or later |
||
| ON-LINE GUIDE * | User guide supplied | ||
| SOFTWARE TOOLS * | Epson Scan Tool Light Epson Smart Panel* Epson PhotoQuicker Epson Print Image Framer Designer Epson PRINT Image Framer Tool Epson Web-To-Page Epson Photo Starter PhotoImpression |
||
| * Windows® only | |||
| MEMORY CARDS SUPPORTED | |||
| CompactFlash, SmartMedia*, Memory Stick, MagicGate Memory Stick, Memory Stick Duo**, Memory Stick PRO, Memory Stick Pro Duo**,
Microdrive, SD (Secure Digital) Card, MiniSD Card**, MultiMedia Card, xD-Picture Card * Maximum Capacity is 128MB ** With Adaptor |
|||
| WARRANTY | |||
| 12 months return to base | Standard | ||
| Epson Warranty | |||
| ELECTRICAL SPECIFICATIONS | |||
| RATED VOLTAGE | AC 220 ~ 240V | ||
| RATED FREQUENCY | 50 ~ 60 Hz | ||
| POWER CONSUMPTION | Approx. 10W (ISO 10561 Letter Pattern) | ||
| INK CARTRIDGES | |||
| BLACK INK CARTRIDGE (T0561) PRINT CAPACITY‡ 290 A4 pages at 5% coverage (calculated) 420 pages at 3.5% (ECMA) |
COLOUR INK CARTRIDGES Cyan (T0562), Magenta (T0563), Yellow (T0564) PRINT CAPACITY‡ 290 A4 pages at 5% coverage (calculated) |
||
| *True BorderFree printing is available for the following media sizes: A4, 4"x6", 5"x8", 3.5"x5", 5"x7", Panoramic (210x594mm). Media types recommended: Premium Glossy Photo Paper, Matte Paper - Heavyweight. | |||
|
