Back catalogue – Stylus Photo TX710W

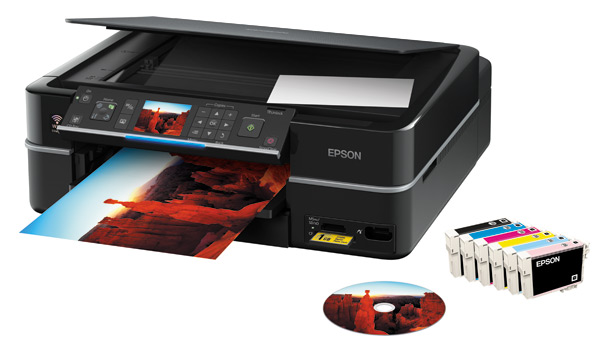

The Epson Stylus® Photo TX710W multifunction wraps advanced performance, photo management, high-definition printing and Wi-Fi connectivity into a sleek design. It offers six individual ink cartridges, a large LCD viewer, PictBridge, high resolution scanner, advanced Epson Claria® Photographic ink, duplex printing and card slots, to please the discerning photo enthusiast.
Features & Benefits
- Cutting-edge Italian styling – designed for the image conscious user seeking an attractive solution to compliment their busy and creative lifestyle.
- Intuitive user interface – Tilting display panel with 2.5” LCD viewer.
- Premium performance – up to 40ppm print speeds and 4 x 6” photos in as little as 10 seconds.
- Advanced document management – dual paper trays and auto duplexer for double-sided printing.
- Comprehensive photo management – integrated memory card slots and PictBridge connectivity to easily transfer, view, edit and print photos.
- Epson Claria high – definition Photographic Ink – up to 200 years album storage.
- Integrated Wi-Fi and networking – effortless shared printing with the choice of cable-free convenience.
- CD/DVD printing – customise and personalise audio and visual content.
- 6 individual ink cartridges – only replace the colour you use with a choice of sizes available
- Variable Sized Droplet Technology – accurate document and photo reproduction at up to 5760 dpi.
- Epson iPrint - wireless photo printing from various Apple™ devices
Printer |
||
| PRINTER TYPE | ||
|---|---|---|
| Epson Stylus® Photo TX710W | ||
| PRINTING METHOD | On-demand Inkjet (piezoelectric) | |
| NOZZLE CONFIGURATION | 180 nozzles colour (Black, Yellow, Light Magenta, Light Cyan, Cyan, Magenta) | |
| PRINT SPEED | ||
| BLACK TEXT (MEMO) A4 (Draft)^ | 40ppm*1 | |
| COLOUR TEXT (MEMO) A4 (Draft)^ | 40ppm*2 | |
| Photo 4"x6" (10 x 15cm) (Draft)^ | Approx. 10 sec *3+ | |
Print Speed Data Printout Patterns The thumbnail
images below show the printout patterns used to determine print speed specifications.
*"Second" rating refers to the time taken to print one page. The computer environment we test under is as follows: CPU: Pentium 4, 2.4GHz; RAM: 512MB; OS: Windows XP professional; Interface/Connectivity: USB2.0 HighSpeed; SOFTWARE: Word XP/PhotoShop7.0; PAPER: Epson Premium Glossy Photo Paper or Plain Paper + When printed on Epson Premium Glossy Photo Paper |
||
| RESOLUTION | ||
| 5760 Optimised dpi using Resolution Performance Management (RPM) Technology | ||
| MINIMUM INK DROPLET VOLUME | 1.5 Picolitres | |
| PRODUCT DIMENSIONS | 446mm (W) x 385mm (D) x 150mm (H) | |
| WEIGHT | 9.0kg | |
| PAPER HANDLING | ||
| PAPER SIZES | A4, Letter, Legal, 8x10", 5x7", 4x6", 3.5x5", 5x8", A6, A5, B5, Half Letter, Envelopes: No10, DL, C6 | |
| PAPER HOLD CAPACITY | 120 sheets, A4 Plain paper (primary tray) | |
| DOUBLE–SIDED PRINTING | Yes – automatic duplexer included | |
| *True BorderFree™ printing is available for
the following media sizes: 4"x6", 5"x7" and A4. Media types recommended: Premium Glossy Photo paper A4, 4"x6" and 5"x7". BorderFree prints are media dependent. |
||
Scanner |
||
| SCANNER TYPE | A4 Flatbed colour image scanner | |
| SENSOR TYPE | CIS | |
| DOCUMENT SIZE | Up to A4 | |
| PIXEL DEPTH | Input 48bits (16bits/colour) / output 24bits (8bits/colour) | |
| SCANNING RESOLUTION | 2400 x 4800 dpi | |
| SCAN SPEED | A4 4800dpi 11m sec/line (mono) | |
| A4 4800dpi 32.8m sec/line (colour) | ||
Copy Function |
||
| COPY SPEED+# | ||
| Copy Speed Black or Colour A4 | 40cpm (mono or colour) | |
| COPY FEATURES | ||
| COPY MODES | Auto Fit Function |
|
General |
||
| OPERATING SYSTEMS | ||
| PRINTER DRIVERS* | Windows® 7/7x64/Vista/Vista64/XP/XPx64/2000, Mac® OS 10.3.9 or later with USB* | |
| ELECTRICAL SPECIFICATIONS | ||
| RATED VOLTAGE | AC 220 ~ 240V | |
| RATED FREQUENCY | 50 ~ 60Hz | |
| Approx. 25W Standalone copying (ISO/IEC24712 Pattern) | ||
| POWER CONSUMPTION | Sleep mode : Approx. 5.0W Power OFF : Approx. 0.5W |
|
| NOISE LEVEL | ||
| NOISE LEVEL# | 4.8B(A), 35dB(A)> | |
| INTERFACES | ||
| CONNECTIVITY | Hi–Speed USB — Compatible with the USB 2.0 Specification (cable included) | |
| NETWORKING | 802.11b/g WiFi |
|
| LCD SCREEN | 2.5" with tilt-adjustment via control panel | |
| CARD SLOTS | CF Type II, Memory Stick, SD/MMC, XD-Picture card | |
| PICTBRIDGE | Yes |
PRINTER SOFTWARE (AVAILABLE ON CD-ROM ONLY) |
| SOFTWARE TOOLS* | Epson Event Manager (with Scan 2.0 and Email 1.0) |
|
| WARRANTY | ||
| 12 months return to base | Standard | |
| Epson Warranty | ||
| OPTIONS | ||
| Bluetooth adaptor | C12C824384 |
|
| LIGHTFASTNESS | ||
| LIGHTFASTNESS# | Up to 200 years album storage | |
| # Data is calculated using accelerated simulation of fading under indoor preservation conditions including fluorescent light indoor display. Temperature, humidity and some atmospheric gases may also affect the rate of fading. The estimated lightfastness period does not indicate the colour changing or the durability of the paper itself. Epson recommends that your prints be stored in a photo album (or plastic photo storage box) in acid free, archival sleeves commonly available from most camera shops. | ||
| INK CARTRIDGES | ||
| HIGH CAPACITY INK CARTRIDGES | 81N Black, 81N Cyan, 81N, Magenta, 81N Yellow, 81N Light Cyan, 81N Light Magenta | |
| HIGH CAPACITY INK CARTRIDGE YIELDS^^ | Approx. Black 560 pages, Colour Composite 845 pages | |
+ Copy speed when printed on plain paper in the fastest mode. Copy speed may vary depending on copy mode, document complexity, type of paper used and number of copies. >> According to ISO7779 Pattern with Premium Glossy
Photo Paper / Photo RPM mode. |
||
