Back catalogue – SureColor P800



Epson is proud to introduce the highly anticipated Epson SureColor P800 delivering professional quality photographic and fine art images in sizes up to A2 and larger using large cost-effective ink cartridges. The SC-P800 combines advanced UltraChrome® HD pigment ink with Epson's innovative MicroPiezo® print head to enable gallery-quality black-and-white output as well as exhibition quality colour prints complete with breathtaking blues and violets. It sets a new benchmark in terms of quality and flexibility with an outstanding colour gamut, the highest D-max to date and super-high resolution prints on a wide variety of media types. Designed for professional photographers, graphic artists and designers, it features enhanced networking, easy media loading and optional roll media support. It ships complete with a set of starter inks and an advanced software package.

KEY FEATURES & BENEFITS
  • A2+ printing – Exhibition Quality prints up to A2 and above with easy front media loading and optional 17" roll support.
  • Unprecedented black density – Epson UltraChrome HD Ink delivers the highest black density1 ever seen from a pigment ink for the richest blacks and colour prints with outstanding depth on a wide variety of media types.
  • Auto-switching black inks – The SC-P800 automatically switches between Photo and Matte Black inks to optimize your output depending on the media type you choose. Photo Black produces rich, deep blacks on traditional photographic and glossy stocks while Matte Black produces exceptional results on plain and speciality stocks.
  • Epson Print Layout Software – This plug-in for Adobe Photoshop, Lightroom, and Nikon ViewNX-i provides a simple, easy and flexible tool for producing images to suit a variety of display requirements. Images can be printed individually or as a compound, either borderless or with a choice of border sizes and styles. An advanced gallery wrap function enables output that is suitable for mounting onto a frame. The program operates via intuitive and consistent controls that include slider bars and colour wheels for precise and easy adjustment. It includes a set of colour modes to create different finishes and moods as well as an Advanced Black and White mode. It includes a set of template Layouts, supports ICC soft proofing, Colour Production, Preview, Custom media registration & Panorama Layouts.
    Epson SC-P800 features
  • Individual High Capacity Ink Cartridges – The SC-P800 operates with 9 high capacity 80ml ink cartridges that enable you to print more and spend less time worrying about supplies. It even ships with a set of 64ml starter inks to get you going5.
  • Advanced, simple media handling – An Improved design allows precise front feeding of fine art paper - a definite advantage that not only simplifies a delicate task, but reduces installation space.
  • Optional Roll paper Support – Many specialty media stocks are only available in a roll format. With a low cost add-on you can now output onto an expanded range of media while also producing panoramic images up to 17" wide and over 1m in length. Great for busy environments you can even leave the printer to produce a long series of prints which can be later cut to individual size requirements.
  • Advanced Connectivity – Choose USB, Ethernet or connect wirelessly in a snap with automatic WiFi setup2 — even the latest wireless standard, 802.11n, is supported. No network? No problem. Wi-Fi Direct® means no router is required6 for connectivity in seconds.
  • Print and share from anywhere in the world3 – Print wirelessly from your iPad, iPhone, tablet or smartphone using Epson iPrint4. Easily print documents, photos, emails and web pages while in your office, on the road or across the globe.
  • Print from an iPad or iPhone – Apple® AirPrint™ makes it simple to print emails, photos, web pages and documents straight from your iPad or iPhone. There's no software to download, no drivers to install and no cables to connect. Your Apple device will automatically connect to the printer.
  • Print from a smartphone or tablet – send images to print using Google® Cloud Print™ with your Gmail™ or Google Drive™ account. Alternatively, print from your Chromebook™ or Google Chrome™ powered device without having to install drivers or connecting cables. It's now even easier to share your Google content from anywhere.
  • Intuitive 2.7" touchscreen with gesture – The SureColor SC-P800 has a built-in 2.7" touchscreen with a keypad and gesture navigation that allows you to check the printer status, ink levels and perform routine maintenance tasks along with a variety of other tasks, all with a swipe of the screen.
  • Performance operation – The P800 can be used with a wide range of photo, design and page layout applications. It is supplied with a driver and can also be operated with a range of RIP and workflow applications.

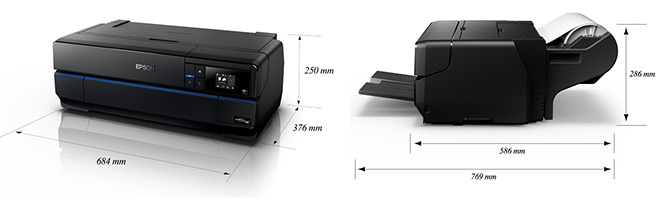

Epson SC-P800 dimensions

* Accelerated testing of prints on specialty photo & fine art media displayed indoors under glass indicates light stability of up to 200 years for colour and 400 years for B&W. IMPORTANT: Actual stability will vary according to the media, image, surface treatment, display conditions, light intensity, humidity and atmospheric conditions. Epson does not provide any warranty or guarantee on the longevity of prints. For further details on light stability and image preservation please visit www.wilhelm-research.com

** For more information visit https://www.epson.com.au/shoponline/coverplus/index.asp.

1 Compared against competitors’ A3+ photo printers with a 6-colour or greater ink set available as at July, 2014
2 Automatic Wi-Fi set-up compatible with Windows 7, Windows Vista and Mac OS. Initial Wi-Fi set-up requires a USB cable for Windows XP users - not included
3 Most features require an Internet connection to the printer, as well as an Internet- and/or email-enabled device. See www.epson.com.au/connect for a list of Epson Connect enabled printers and compatible devices and apps
4 Epson iPrint requires a wireless connection and the Epson printing app. Email printing requires a connection to the internet
5 A proportion of the starter ink will be used during the initial set-up process to charge the printers ink lines. This process should only need to be completed once

SIZE
Max Print Width 17 inch (432mm)
Max Sheet Size A2+
PRINT TECHNOLOGY
Print Head Epson Micro Piezo™
Print Modes Uni and Bi-directional
Features Variable Sized Droplet Technology (VSDT)
Advanced Epson LUT
Enhanced Colour Density
Enhanced Print Durability
Nozzle Configuration 180 per colour
Active Channels 8 (Auto Pk / Mk switching)
Max Resolution 2880 x 1440dpi
Min Droplet Size 3.5pl
INK SYSTEM
Family Epson Ultrachrome® HD
Type Aqueous all-pigment
Cartridges 9
Cartridge Size 80ml (64ml starter carts provided with machine)
PERFORMANCE
A4 2 minutes
A3+ 4.5 minutes
A2 6 minutes

Figures represent print times only based on the test sample image as shown, produced on Premium Photo Paper in Quality /Super Fine (1440x720dpi) mode. The total throughput time for a particular image will depend on a number of factors including the PC, software application, workflow configuration, networking, file format / size, image content, paper type and print mode.

MEDIA SUPPORT
Format Cut Sheet + (optional) Roll
Size 3.5" x 5" (89 x 127mm) – 17" x 37" (432 x 950mm) sheets 13" (329mm) - 17" (432mm) wide with 2" or 3" core (optional) rolls
Thickness 0.08-0.70mm standard sheets
0.70-1.5mm thick sheets
0.25-0.70mm (optional) rolls
Min Margins (Normal Printing) 3mm all directions standard sheets
3mm left & right, 20mm top & bottom thick sheets
50mm top, 14mm bottom (optional) rolls
Borderless Printing (Supported on nominated paper widths on standard sheet & roll media) A4, A3, A2, Letter (8.5"x11"), 3.5"x5" (90x130mm), 4"x6" (100x150mm), 16:9 (102x181mm), 5"x7" (130x180mm), 5"x8" (130x200mm), 8"x10" (200x250mm), 10"x12" (254x305mm), 11"x14" (279x356mm) 11"x17" (280x430mm), 16"x20" (410x510mm) & 17"x22" (430x560mm) sheets
13" (329mm), 16" (406mm), 16.5" (419mm) & 17" (432mm) wide (optional) rolls
Max Print Length 15m (1.1m recommended for max print quality)
Loading Top rear sheet feeder for plain and photo paper
Front manual for fine art & poster board
(Optional) rear roll
Roll Handling Optional accessory, operation requires manual cutting
Output Front with extendable tray
Double Sided Printing Supported via manual loading however please refer to the user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability.
OPERATION
Control Panel 2.7” Colour LCD
Interface High Speed USB 2.0
Ethernet 10Base-T / 100Base-TX
Wi-Fi (IEEE802.11 b/g/n)
Included Software (Windows) Printer Driver, XPS Driver, Epson Easy Photo Print, EpsonNet Config, EpsonNet Setup, EpsonNet Print, Software Updater & Adobe ICC Profile on CD
Web Downloads (Windows) Epson Print Layout, ColorBase2, E-Web Print, Firmware Updater & software uninstaller
Web Downloads (Mac) Printer Driver, Epson Easy Photo Print, Epson Print Layout, ColorBase2, EpsonNet Config, EpsonNet Setup, Software Updater, Firmware updator & software uninstaller
OS Compatibility Mac OS X 10.6.8 or later
Windows 10, 8/8.1, 7, Vista, & Win XP SP1
3rd Party S/W Compatibility Compatible with a wide range of design, production, workflow management, and RIP software
Memory 256MB
Language ESC/P Raster
ENVIRONMENT
Operational Temp 10° to 35° C (15-25° C recommended)
Operational Humidity 20 to 80% with no condensation (40-60% recommended)
Power Supply 220 – 240V, 50 – 60Hz AC, 0.3A
Power Consumption 21W Operating / 1.2W Sleep / 0.5W Off
Operating Noise 49.6dB
Operational Space
(W x D x H)
884mm x 1030mm x 550mm recommended
(Additional space will be required at rear when using the straight through paper path)
PHYSICAL
Dimensions (W x D x H) 684 x 376 x 250mm (sheet feeder & output tray closed)
684 x 586 x 286mm (as above, with optional roll adaptor)
Weight 19.5Kg (no ink)
22.1Kg (as above, with optional roll adaptor)
WHAT'S IN THE BOX
Printer, Power Cord, Set of 64ml starter inks, one maintenance cartridge, set-up guide, User Manual/driver/software CD. Optional Roll adaptor available separately.
Packaging (WxDxH) Printer: 797 x 527 x 405mm, 26Kg
Optional Roll Adaptor: 658 x 307 x 417mm, 2Kg


OPTIONS & ACCESSORIES
C12C811431 Optional Roll Paper Unit
C12C890121 Roll Paper Belt
C13T582000 Replacement Maintenance Tank
1YWSCP800 1 Year CoverPlus On-Site Service Pack**
2YWSCP800 2 Year CoverPlus On-Site Service Pack**
** The printer comes with a comprehensive warranty that includes cover for the Print Head. Optional CoverPlus packages enable cover to be extended with an enhanced service level. CoverPlus can be purchased concurrently with the printer or ordered separately up to 365 days after the original product invoice date. Cover can be extended by 1, 2, 3 or 4 years (total cover cannot exceed 5 years). Limitations apply to the provision of Warranty and CoverPlus Service. Support is only provided for product supplied through Epson Australia or Epson New Zealand. The facility is provided in conjunction with the Authorised Large Format Reseller through which the product is ordered. Regional locations and installations with difficult access may attract additional charges. Service may be restricted or limited when equipment is modified, used outside of specification, &/or with non-Epson consumables. For full details on coverage, terms and limitations please review the warranty terms listed on this web-site and contact Epson or one of our Authorised Large Format Resellers if you have questions or concerns.


Product name Globalcode Price (inc GST)
excludes delivery
Order quantity
INK CARTRIDGES
UltraChrome HD - Vivid Magenta Ink Cartridge C13T85030N $112.95
UltraChrome HD - Vivid Light Magenta Ink Cartridge C13T85060N $112.95
UltraChrome HD - Matte Black Ink Cartridge C13T85080N $112.95
UltraChrome HD - Photo Black Ink Cartridge C13T850100 $112.95
UltraChrome HD - Cyan Ink Cartridge C13T850200 $112.95
UltraChrome HD - Yellow Ink Cartridge C13T850400 $112.95
UltraChrome HD - Light Cyan Ink Cartridge C13T850500 $112.95
UltraChrome HD - Light Black Ink Cartridge C13T850700 $112.95
UltraChrome HD - Light Light Black Ink Cartridge C13T850900 $112.95
GENUINE Epson PAPERS
A3 Archival Matte Paper - 50 Sheets (189gsm) C13S041344 $101.95
A3 Premium Glossy Photo Paper - 20 sheets (255gsm) C13S041288 $85.95
A3 Premium Semigloss Photo Paper - 20 Sheets (250gsm) C13S041334 $114.95
A4 Archival Matte Paper - 50 Sheets (189gsm) C13S041342 $40.99 Out of stock
Notify me
A4 Premium Glossy Photo Paper - 20 Sheets (255gsm) C13S041287 $29.99
A4 Premium Semigloss Photo Paper - 20 Sheets (250gsm) C13S041332 $49.99
Epson Archival Paper 189gsm Matte A3+ Sheet Media (50pcs) C13S041340 $119.00 Out of stock
Notify me
Epson Canvas Signature Worthy Premium Satin 13" Roll Media C13S041845 $79.00
Epson Canvas Signature Worthy Water Resistant Matte 17" Roll Media C13S042013 $159.00
Epson Fine Art Paper Signature Worthy Cold Press Bright 17" Roll Media C13S042313 $239.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Cold Press Bright A2 Sheet Media C13S042312 $299.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Cold Press Bright A3+ Sheet Media C13S042310 $203.00
Epson Fine Art Paper Signature Worthy Cold Press Bright A4 Sheet Media C13S042308 $79.00
Epson Fine Art Paper Signature Worthy Cold Press Natural 17" Roll Media C13S042303 $239.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Cold Press Natural A2 Sheet Media C13S042302 $299.00
Epson Fine Art Paper Signature Worthy Cold Press Natural A3+ Sheet Media C13S042300 $203.00
Epson Fine Art Paper Signature Worthy Cold Press Natural A4 Sheet Media C13S042298 $79.00
Epson Fine Art Paper Signature Worthy Hot Press Bright 17" Roll Media C13S042333 $239.00
Epson Fine Art Paper Signature Worthy Hot Press Bright A2 Sheet Media C13S042332 $298.00
Epson Fine Art Paper Signature Worthy Hot Press Bright A3+ Sheet Media C13S042330 $203.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Hot Press Bright A4 Sheet Media C13S042328 $79.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Hot Press Natural 17" Roll Media C13S042323 $239.00
Epson Fine Art Paper Signature Worthy Hot Press Natural A2 Sheet Media C13S042322 $298.00
Epson Fine Art Paper Signature Worthy Hot Press Natural A3+ Sheet Media C13S042320 $203.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Hot Press Natural A4 Sheet Media C13S042318 $83.00
Epson Fine Art Paper Signature Worthy Premium Luster 16" Roll Media C13S042079 $199.00
Epson Fine Art Paper Signature Worthy Premium Luster 300mm Roll Media C13S042078 $175.00
Epson Fine Art Paper Signature Worthy Premium Luster A2 Sheets (25pcs) C13S042123 $153.00
Epson Fine Art Paper Signature Worthy Premium Luster A3+ Sheets (50pcs) C13S041407 $153.00
Epson Fine Art Paper Signature Worthy Traditional 17" Roll Media C13S045054 $259.00
Epson Fine Art Paper Signature Worthy Traditional A2 Sheets (25pcs) C13S045052 $246.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Traditional A3+ Sheets (25pcs) C13S045051 $155.00 Out of stock
Notify me
Epson Fine Art Paper Signature Worthy Traditional A4 Sheets (25pcs) C13S045050 $64.95
Epson Fine Art Paper Velvet A2 Sheet Media C13S042096 $265.00 Out of stock
Notify me
Epson Fine Art Paper Velvet A3+ Sheet Media C13S041637 $131.00 Out of stock
Notify me
Epson Fine Art Paper Watercolor Radiant White A3+ Sheet Media C13S041352 $71.95 Out of stock
Notify me
Epson Fine Art Signature Worthy Sample Media Pack C13S045234AU $45.48
Epson Photo Paper 102gsm A2 Sheet Media (30pcs) C13S041079 $60.95
Epson Photo Paper 102gsm A3 Sheet Media (100pcs) C13S041068 $92.95
Epson Photo Paper 102gsm A3+ Sheet Media (100pcs) C13S041069 $86.95
Epson Photo Paper 250gsm Premium Semigloss A3+ Sheets (20pcs) C13S041328 $98.00
Epson Photo Paper 255gsm Premium Gloss A3+ Sheet Media (20pcs) C13S041289 $98.00
Epson Photo Paper Gloss (250) 17" Roll Media C13S041892 $142.00
Epson Photo Paper Premium Gloss (250) 16" Roll Media C13S041742 $199.00 Out of stock
Notify me
Epson Photo Paper Premium Glossy (250) A2 Sheet Media C13S042091 $120.00
Epson Photo Paper Premium Semigloss (250) 16" Roll Media C13S041743 $199.00 Out of stock
Notify me
Epson Photo Paper Premium Semigloss (250) A2 Sheet Media C13S042093 $120.00 Out of stock
Notify me
Epson Photo Paper Premium Semimatte (260) 16" Roll Media C13S042149 $199.00
Epson Presentation Paper 167gsm Heavy Weight Matte A3 (50pcs) C13S041261 $99.95
Epson Presentation Paper 167gsm Heavy Weight Matte A3+ (50pcs) C13S041264 $109.00 Out of stock
Notify me
Epson Versatile Paper 192gsm Enhanced Matte 17x22" Sheets (50pcs) C13S041908 $142.00
Epson Versatile Paper 192gsm Enhanced Matte A2 Sheets (50pcs) C13S042095 $153.00
Epson Versatile Paper Enhanced Matte Paper 17" Roll Media C13S041725 $131.00
ACCESSORIES & OPTIONS
Replacement Stylus Pro & SureLab Maintenance Tank C13T582000 $31.95
